- Descriere
- Review-uri (0)

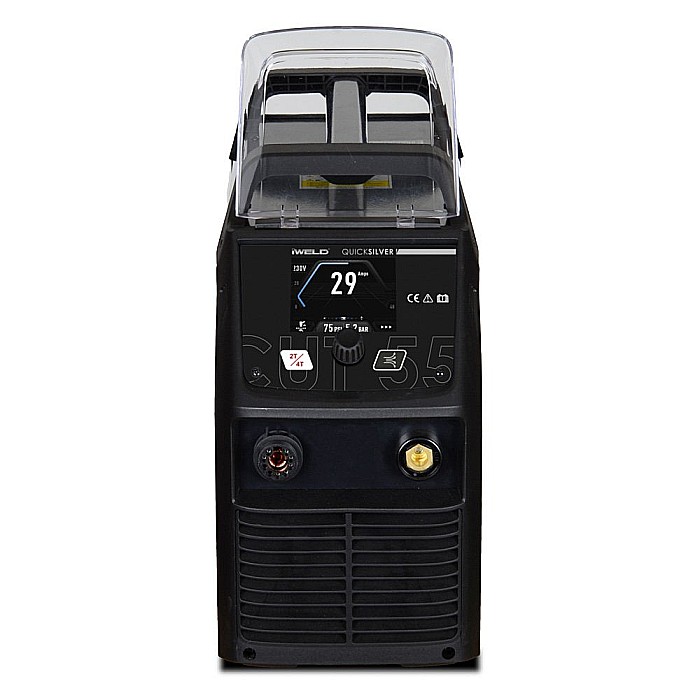

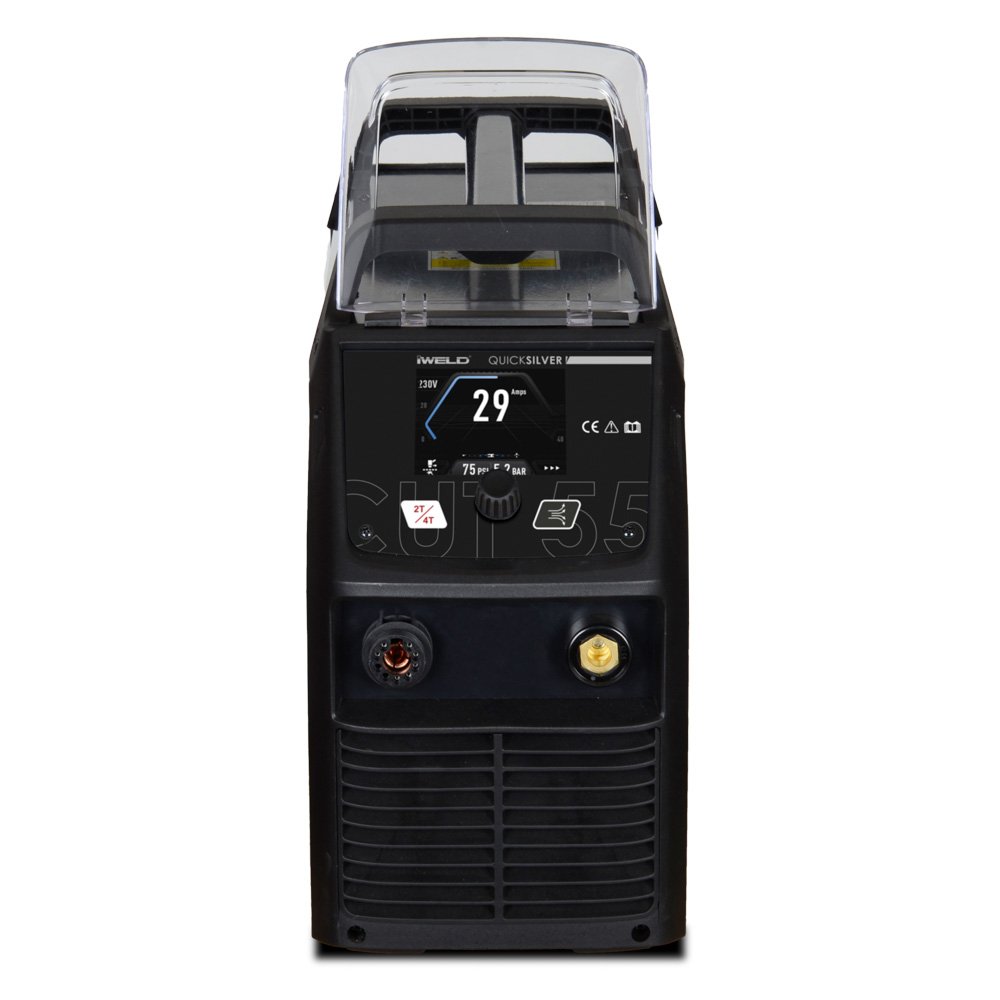

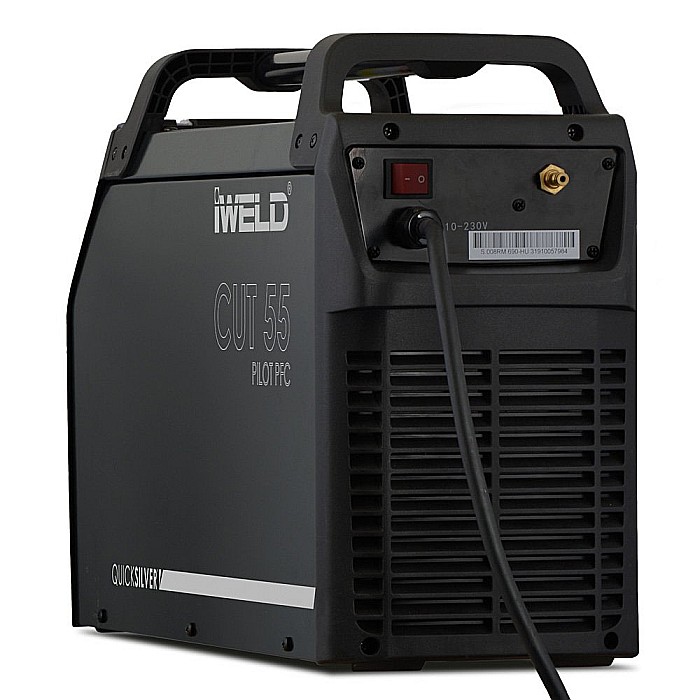

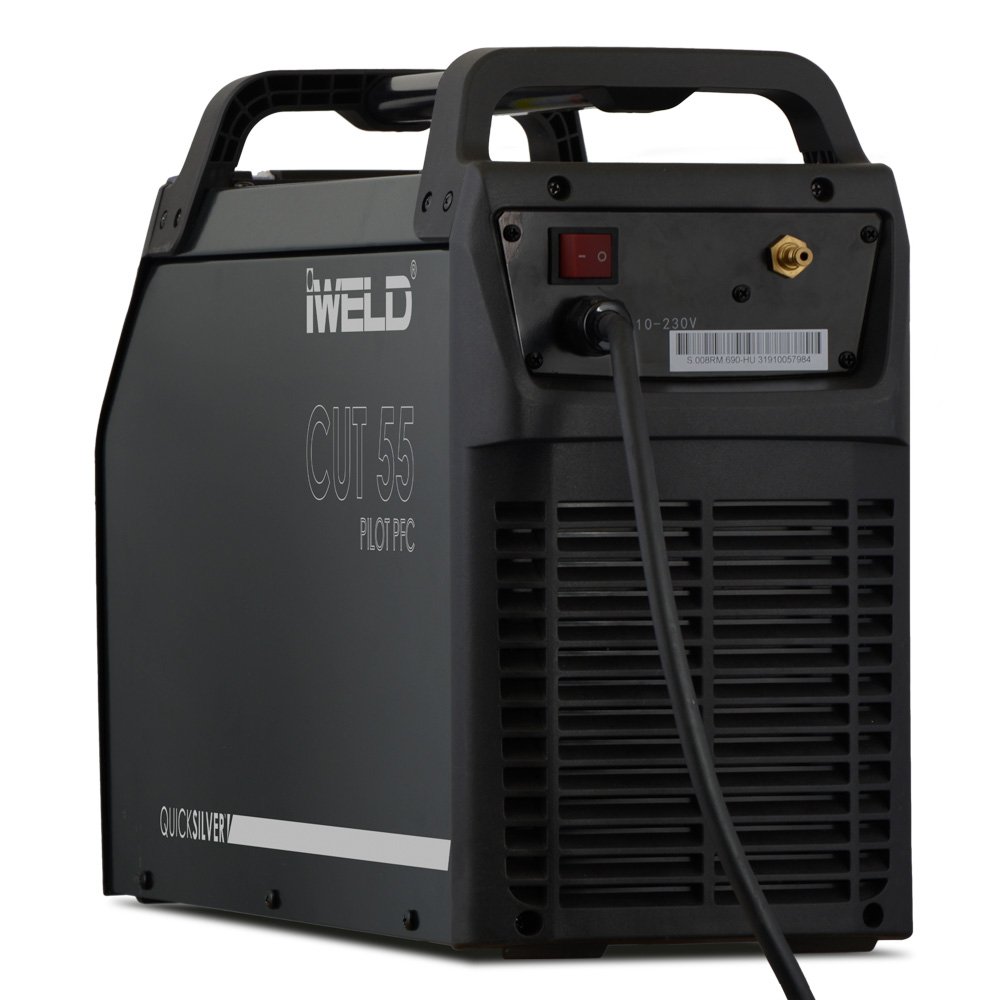

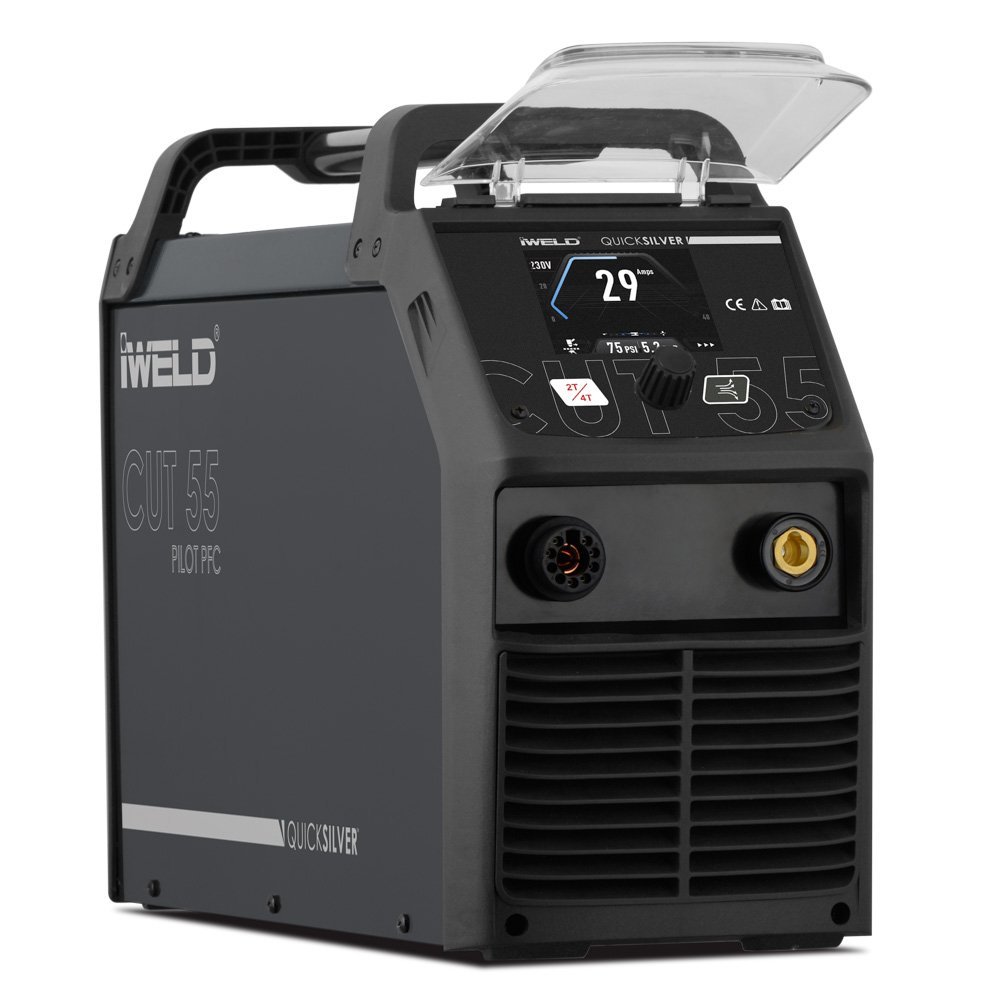

WELD CUT 55 Pilot PFC este un sistem profesional de tăiere cu plasmă de 40A extrem de portabil si usor de utilizat.
Grosime maxima de taiere: 18 mm
Caracteristici
Tăiere rapidă şi de calitate
Arc stabil

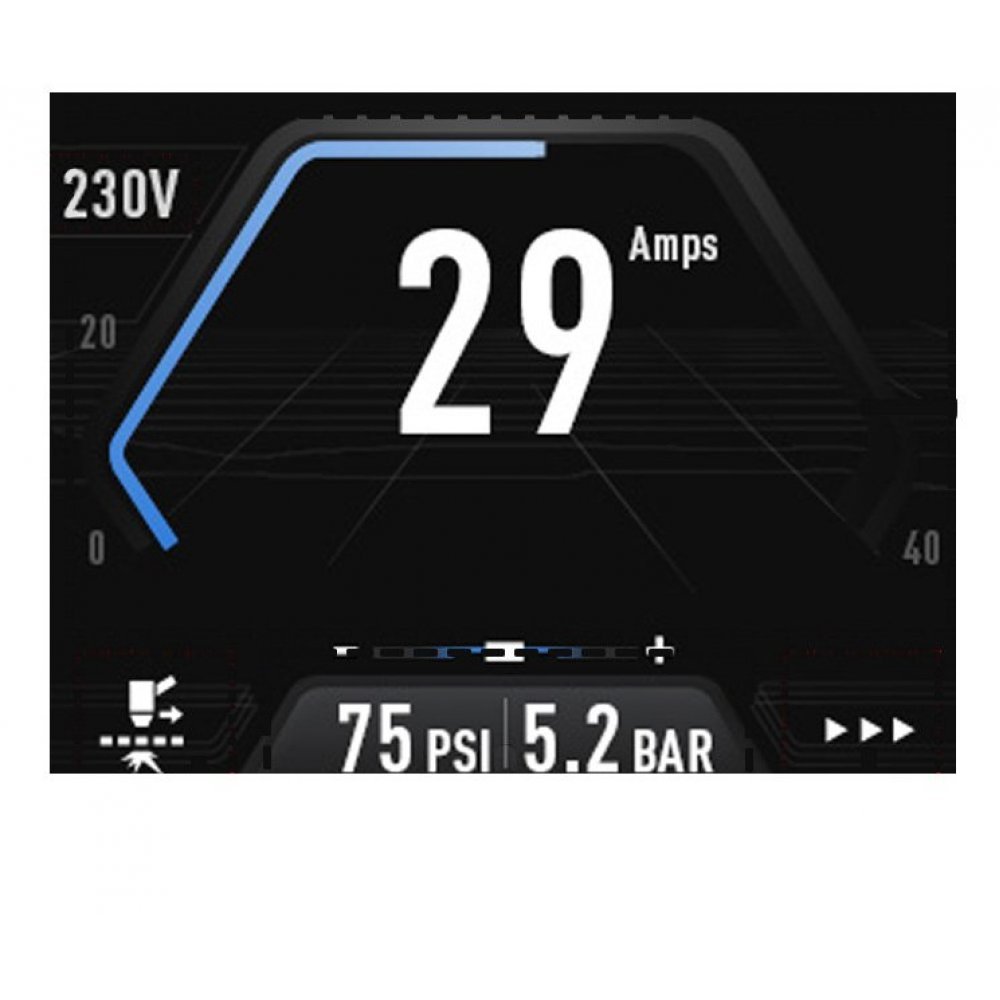

Comenzi digitale
Poate fi alimentat si de la generator
Costuri de taiere reduse
Aprindere arc PILOT
Date Tehnice
| Tip invertor | IGBT |
| Aprindere arc | PILOT |
| THC - control al inaltimii | Nu |
| DUAL AIR SYSTEM - compresorul incorporat | NU |
| Afisaj digital LED | LCD |
| Conexiune CNC | NU |
| 2T/4T | Da |
| Pistol de plasma inclus | PT40 |
| Grosimea maxima de tãiere (maruntire) - otel | 18 mm |
| otel carbon | 14 mm |
| otel inoxidabil | 14 mm |
| aluminiu | 8 mm |
| cupru | 4 mm |
| Numar de faze | 1 |
| Tensiune de alimentare | 110/230VAC±10%, 50/60Hz |
| Curentul de intrare max/ef. | 20A/14.A |
| Factorul de putere (cos?) | 0.99 |
| Randament | 85% |
| Raport sarcina - durata (10 min/40 OC) | 110V: 20A@100%, 22A@60%, 30A@35%, 230V:30A@100%, 36A@60%, 40A@50% |
| Reglare curent de iesire | 110V: 20A-30A, 230V: 20A-40A |
| Tensiune de iesire nominala | 110V:88V-92V, 230V: 88V-96V |
| Tensiune de mers in gol | 110V: 328.3V, 230V: 327.9V |
| Clasa de izolatie | H |
| Grad de protectie | IP23 |
| Masa | 8.1 kg |
| Dimensiunile | 605X220X405mm |
